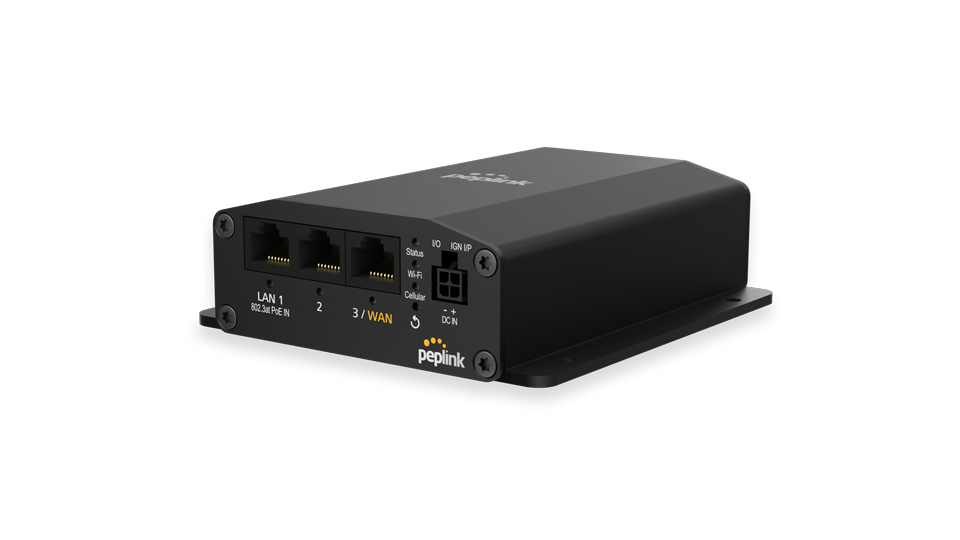

MAX BR1 Mini Core

Serie: VOLUME_BASED • Type: HARDWARE • Opprinnelse: TW

Produktnummer: MAX-BR1-MINI-LTE-E-T-M-PRM Kategorier: MAX-serien, Rutere Stikkord: HARDWARE

Industrial-Grade 4G LTE Router
1x Embedded 4G LTE Modem (EMEA/ CAT-4)
3x Optional Ethernet WAN
Optional WAN Failover

* PoE input, ignition sensing, WiFi and GPS are not supported **Volume-Based Series: please contact your Peplink account manager for the tier pricing info

Type: HARDWARE
Produktkode: MAX-BR1-MINI-LTE-E-T-M-PRM

Vekt	0,43 kg
Dimensjoner	125 × 107 × 35 cm
Brand	Peplink
Opprinnelsesland	TW

Mobility

Grensesnitt

Antall WAN-porter	0 / 1 (GE) ℹ️
Antall LAN-porter	3 / 2 (GE) ℹ️
Maks WAN/LAN-konfigurasjon	1 WAN with 2 LAN 0 WAN with 3 LAN
SFP LAN / WAN	No
Serial Interface	No
Wi-Fi AP	No
Wi-Fi WAN	No
USB WAN	No
Module Expansion	No

Ytelse

Gjennomstrømning (ruter)	300Mbps ℹ️
SpeedFusion VPN Throughput (No Encryption)	80Mbps ℹ️
SpeedFusion VPN Throughput (256-bit AES)	60Mbps ℹ️
Anbefalte brukere	1–60
Maks administrerte AP/svitsjer	No

Trådløs

Antall mobilmodem	1
Mobilmodemkategori	1x CAT-4 1x CAT-7
5G support	No
SIM-spor	2
SIM-kortstørrelse	Nano-SIM (4FF)
Wi-Fi-radio	No
Wi-Fi Antenna Transmit Power (2.4GHz, single chain)	No
Wi-Fi Antenna Transmit Power (5GHz, single chain)	No
Flere SSID-er	No
GPS	No
RemoteSIM (used in SIM Injector)	No
FusionSIM	No
Peplink eSIM Data Plans	Yes (HW3+) ℹ️
BYO eSIM	Yes (HW3+) ℹ️

Funksjoner

SpeedFusion Hot Failover	Yes ℹ️
SpeedFusion Smoothing	Yes ℹ️
SpeedFusion Bandwidth Bonding	Yes ℹ️
SpeedFusion Connect	Yes ℹ️
SpeedFusion Relay Mode (Server)	Yes
Drop-In Mode	Yes
Høy tilgjengelighet	Yes
Peplink AP Series Management	No
Remote AP & Multiple Config Profiles Management	No
Switch Controller	No
WAN as LAN	Yes
LAN Bypass	No
InTouch	Yes
Virtual WAN	Yes ℹ️
Synergy Mode (Controller)	Yes
Synergized Device	Yes
Application and Web Blocking	Yes
Web Content Filtering	Lite
IP Passthrough	Yes
IPv6	No
x.509 Certificate	Yes ℹ️
Captive portal	Yes
GPIO	Yes
Tenningssensing	No
Netflow Support	Yes
LACP (802.3ad) NIC Bonding	No
Jumbo Frame Support	No
Intern lagring (edge computing)	No
Ekstern lagring via USB	No
Treghetsnavigasjon	No

Kjernefunksjonalitet

Inter-VLAN-ruting	Yes
VLAN-støtte (802.1q)	16
Port-Based VLAN	Yes
Lastbalansering (algoritmer)	8
Lastbalansering og failover	Yes
Innkommende lastbalansering	No
InControl 2 Cloud Management	Yes
InControl GPS Fleet Management	No

QoS

Båndbreddemonitorering	Yes
QoS for VoIP and E-Commerce	Yes
Brukergruppebasert båndbreddekontroll	Yes

VPN

SpeedFusion VPN	Yes
Antall SpeedFusion VPN-peers	2 or 5 ℹ️
IPsec VPN	Yes
Antall IPsec-tunneler	5
L2TP VPN / Open VPN / PPTP VPN Server	Yes
Maks PPTP/L2TP/OpenVPN-brukere	3
Remote RADIUS / LDAP authentication in Remote User Access	No
Antall OpenVPN-tunneler (site-to-site)	5
Antall GRE-tunneler (site-to-site)	5

Maskinvare

Innkapsling	Compact,Indoor Metal
4pin Molex Micro-Fit Connector	Yes
Terminalblokk-strøm (kjøretøy)	No
Strømadapter/PSU	AC Input 100V–240V DC Output 12V 2A ℹ️
Innspenning	DC 10–30V
PoE Input	No
PoE Output	No
USB-strøminput	No
Nominalt strømforbruk	10W
Maks strømforbruk	16W
Dimensjoner (tommer)	4.95 x 4.2 x 1.4 inches
Dimensjoner (mm)	125.7 x 107 x 35 mm
Vekt (lbs)	0.95 pounds
Vekt	430 grams
Driftstemperatur	-40°–149°F -40°–65°C
Luftfuktighet	15%–95% (non-condensing)
Rackmontering	No
Dobbel hot-swap strømforsyning	No
